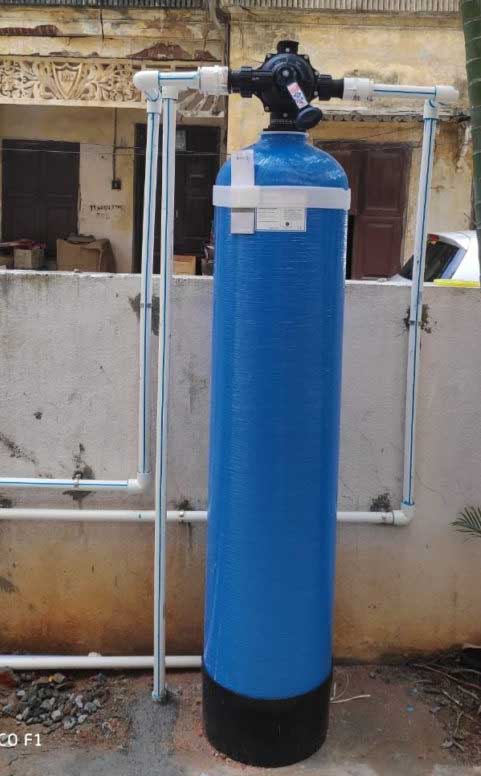

The Overhead Tank Filtration system effectively removes sediment impurities such as sand, silt, dust, chlorine, and other contaminants. Even water sourced from metro or panchayat systems, including reserved rainwater, may come with harmful impurities that can lead to diseases like flu and viral infections. By bypassing this water through the Overhead Tank Filtration system, contaminants are removed, and pure water is passed to the overhead tank.
- The installation is quick and easy, requiring no disruption to your existing pipelines—simply bypassing to your overhead tank.
- It purifies your water by eliminating fine dust particles and sediment impurities.
- The valves used are German-made with built-in Ceramic Discs for optimal performance.
- The filtration cylinder vessels are crafted from high-quality Pentair FRP, a trusted brand known for durable FRP vessels.
- The filter media used in the Overhead Tank Filtration system does not require replacement, lasting for 10 to 15 years.
- Overall, the WATERSPARKS Overhead Tank Filtration System offers a “ONE-TIME SOLUTION” for ensuring clean and safe water.
Applications :
- Applications of the Overhead Tank Filtration System:
- Houses
- Hospitals
- Hotels
- Schools
- Restaurants
- Any place facing dust particle contamination in their water
Specifications:
- Dual Media Filter (DMF):
- Vessel Dimensions: 255mm Diameter x 1370mm Height
- Filter Media: IR OT1, Silex
- Filter Feed Pump:
- Capacity: 700 LPH
- Motor: ½ HP
- Type: Mono-bloc
- Pipe Works:
- Interconnecting Pipes & Fittings for water lines
- Water Aeration System with specially designed pipes
- This system efficiently addresses dust particle contamination in water for various settings.
