Applications of the 3000 LPD Iron Removal Plant:
Houses
Hospitals
Hotels
Schools
Restaurants
And any place with iron contamination in their water.
We are the leading manufacturer of 3000 LPD Iron Removal Plants in Chennai, offering them at a reasonable price. Contact us today for more details!
Specifications of 3000 LPD Iron Removal Plant :
| S.NO | Specifications | Details of Equipment | Quantity |
|---|---|---|---|
| 1 | Dual Media Filter (DMF): Supply, Erection and Commissioning of Pressure DMF with following Specifications: Vessel :330mm Dia X 1372 Height Design Pressure : 10.0 Kg / Cm² Working Pressure : 3.0 Kg / Cm² Filter Media : IR OT1, Silex. Valves : Multi-Port Valves: 25NB (Manual) Accessories : Frontal pipes, Values, Pressure Gauge fitted to give indication pressure drop through filter | Pentair/ Clean Water | 1 Set. |
| 2 | Multi Graded filter (MGF) : Supply, Erection and Commissioning of Pressure MGF with following Specifications: Vessel :330mm Dia X 1372 Height Design Pressure : 10.0 Kg / Cm² Working Pressure : 3.0 Kg / Cm² Filter Media : IR OT2 Silex , MnO2, &Activated Carbon IV value 950+ Valves :Multi-Port Valves: 25NB (Manual) Accessories : Frontal pipes, Values, Pressure Gauge fitted to give indication pressure drop through filter | Pentair/ Clean Water | 1 Set |
| 3 | Aeration Water Tank 2000 Liters RCC Tank/ Plastic Tank / and above with Necessary Gate valves | Sintex or Equivalent | 1 no Client scope |
| 4 | Filter Feed pump Capacity – 1200LPH , Head- 28 Metres , Motor– 1 hp, Type- Mono-bloc | Kirloskar/ Suguna/DAB Equivalent | 1 no Client scope |
| 5 | Pipe Works Interconnecting Pipes & Fittings for lines. Water aeration system specially designed pipes. | CPVC / UPVC | Client scope |
There are several methods for treating iron-contaminated water, such as Ancient and Traditional Iron Removal methods. However, most of these methods are not as effective. To address this, WATERSPARKS has developed a new treatment approach that combines both traditional methods and modern technology. This process does not interfere with your existing plumbing but bypasses it for seamless integration. Here’s how our Iron Removal Filtration System works:
Step 1: The water from the borewell is directed into a separate Aeration Tank, where it is sprayed through specially designed pipes with holes, allowing it to flow evenly within the tank.
Step 2: After filling the Aeration Tank, we allow some time for hard particles, such as sediment and rusted iron, to settle at the bottom.
Step 3: In the Aeration Tank, the waterline is placed half an inch above the ground level, and a drainage line is installed at the bottom. A 5 HP monobloc pump is used to extract the water from this tank.
Step 4: The water is then passed through a Dual Media Filter and Multi-Graded Filter. The filtered water is then redirected to the existing line, which feeds into the overhead tank, and the water is distributed throughout the house.
Step 5: The only maintenance required is a backwash process that flushes out iron sediments and waste from the filters. This is easy to operate, as our valves come with an inbuilt ceramic disc for optimal performance.
This efficient and innovative system ensures that your water is treated effectively while keeping maintenance minimal.

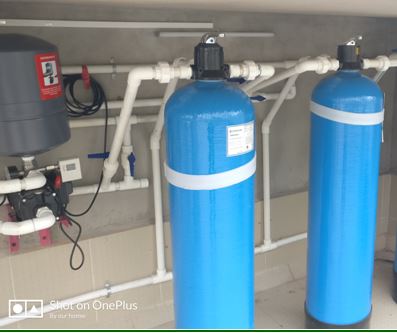

- The 3000 LPD Iron Removal Plant is designed for easy installation without disrupting your existing pipelines—simply bypassing to your overhead tank. It effectively makes your water crystal clear by removing even the smallest iron particles.
- The valves are German-made with an inbuilt ceramic disc for enhanced durability. The filtration cylinder vessels are crafted from Pentair FRP, a top-quality brand known for making premium FRP vessels.
- The filter media used for iron removal is long-lasting, requiring no replacement for 10 to 15 years.
- All in all, WATERSPARKS’ Iron Removal Filtration System provides a reliable “ONE TIME SOLUTION” for your water treatment needs.
