Applications of 2000 LPD Iron removal plant
Residential Use: Houses
Healthcare Facilities: Hospitals
Hospitality Sector: Hotels and restaurants
Educational Institutions: Schools
General Use: Any location with iron contamination in water
We are the leading Manufacturer of 2000 LPD Iron Removal Plants in Chennai. Get the Best Price for the 2000 LPD Iron Removal Plant in Chennai. For more details, please check the buttons.
Specifications of 2000 LPD Iron Remova Plant
| S.NO | Specifications | Details of Equipment | Quantity |
|---|---|---|---|
| 1 | Dual Media Filter (DMF): Supply, Erection and Commissioning of Pressure DMF with following Specifications: Vessel :255mm Dia X 1370 Height Design Pressure : 10.0 Kg / Cm² Working Pressure : 3.0 Kg / Cm² Filter Media : IR OT1, Silex. Valves : Multi-Port Valves: 25NB (Manual) Accessories : Frontal pipes, Values, Pressure Gauge fitted to give indication pressure drop through filter | Pentair/ Clean Water | 1 Set. |
| 2 | Multi Graded filter (MGF) : Supply, Erection and Commissioning of Pressure MGF with following Specifications: Vessel :255mm Dia X 1370 Height Design Pressure : 10.0 Kg / Cm² Working Pressure : 3.0 Kg / Cm² Filter Media : IR OT2 Silex , MnO2, &Activated Carbon IV value 950+ Valves :Multi-Port Valves: 25NB (Manual) Accessories : Frontal pipes, Values, Pressure Gauge fitted to give indication pressure drop through filter | Pentair/ Clean Water | 1 Set |
| 3 | Aeration Water Tank 1000 Liters RCC Tank/ Plastic Tank / and above with Necessary Gate valves | Sintex or Equivalent | 1 no Client scope |
| 4 | Filter Feed pump Capacity -700-900LPH, Head – 28 Metres Motor– ½ hp, Type- Mono-bloc | Kirloskar/ Suguna/DAB Equivalent | 1 no Client scope |
| 5 | Pipe Works Interconnecting Pipes & Fittings for lines. Water aeration system specially designed pipes. | CPVC / UPVC | Client scope |
There are various methods available to treat iron-contaminated water, such as Ancient and Traditional Iron Removal methods. However, these methods are often inefficient. Keeping this in mind, WATERSPARKS has developed an innovative treatment method that combines both traditional practices and modern technology. In this process, we bypass your existing water line without causing any disruption. Below are the
steps involved in our Iron Removal Filtration System:
Step 1: Diversion to Aeration Tank
The bore water is diverted to a separate tank called the Aeration Tank. Instead of flowing directly, the water is sprayed through perforated pipes installed inside the Aeration Tank.
Step 2: Settling of Impurities
Once the Aeration Tank is filled, we allow some time for heavy particles like sediment and rusted iron to settle at the bottom.
Step 3: Waterline and Drainage Setup
In the Aeration Tank, the waterline is positioned about half an inch above the ground level, with a drainage line at the bottom. A 5 HP Monobloc Pump is used to extract the water from the Aeration Tank for further filtration.
Step 4: Filtration Process
The water is then passed through Dual Media Filters and Multi-Graded Filters to remove remaining impurities. The filtered water is then directed to the existing water line, which leads to the overhead tank, where it is stored and distributed throughout the property.
Step 5: Easy Maintenance – Backwash
The system requires minimal maintenance. A simple Backwash operation flushes out iron sediments and other waste from the filters. The process is easy to operate, thanks to the German-made valves with built-in Ceramic Discs.
The WATERSPARKS Iron Removal Filtration System provides an effective, low-maintenance solution for treating iron-contaminated water.

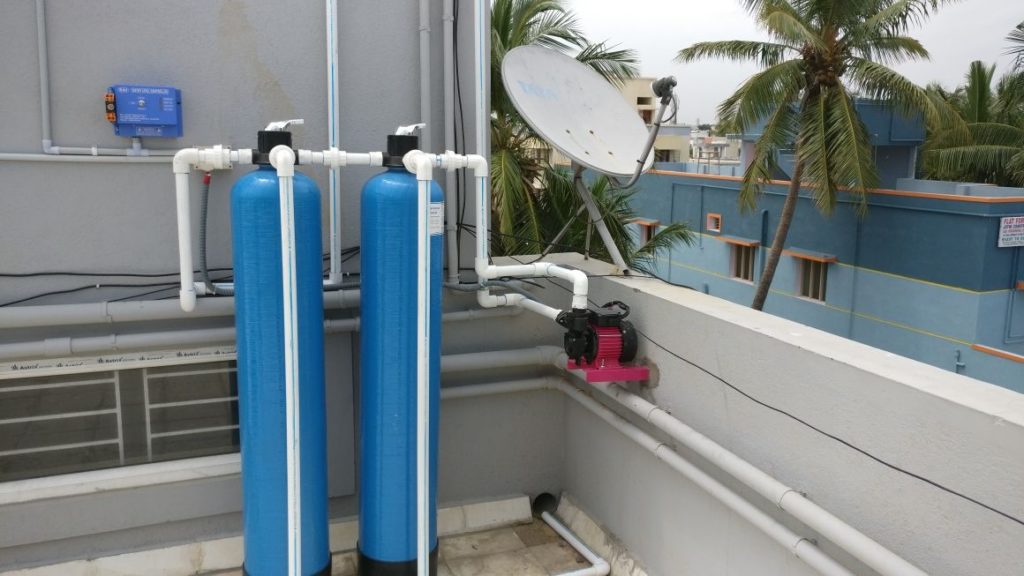

- The 2000 LPD Iron Removal Plant can be easily installed without modifying your existing pipelines, simply by bypassing to your overhead tank.
- Crystal Clear Water: Effectively removes even the smallest iron particles, ensuring pure, clean water.
- Premium Valves: The system features German-made valves with built-in Ceramic Discs for enhanced durability and performance.
- High-Quality Filtration Vessels: The filtration cylinders are constructed using Pentair FRP, a top-tier brand known for producing superior FRP vessels.
- Long-Lasting Filter Media: The iron removal filter media lasts for 10 to 15 years without requiring replacement.
- In summary, the WATERSPARKS Iron Removal Filtration System provides a “One-Time Solution” for long-term, iron-free water with minimal maintenance.
